A solar submersible pumping system converts sunlight into DC electricity using solar panels. This powers a submersible motor-pump set installed inside a borewell or open well, lifting water directly to the surface. Roto RUDRA systems use PMSM technology and an MPPT solar controller to extract maximum power from available sunlight.
Choose a Product
Select a product category to view the related questions.
Solar Submersible Pumping Systems
NEO, ECO, helical rotor and centrifugal solar pump FAQs
Solar Surface Pumping Systems
Helical rotor surface pump FAQs for canals, ponds and shallow sources
Solar Controllers
Only solar, off-grid and hybrid controller FAQs
AC DC Submersible Pumps
Stand-alone helical rotor and centrifugal pump FAQs
DC Submersible Motors
3-inch, 4-inch and 6-inch PMSM motor FAQs
Solar Submersible Pumping Systems
NEO, ECO, helical rotor and centrifugal solar pump FAQs
Solar Submersible Pumping Systems FAQs

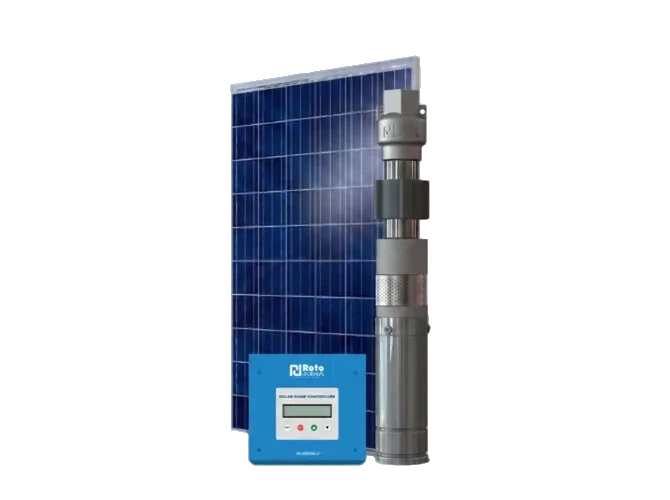

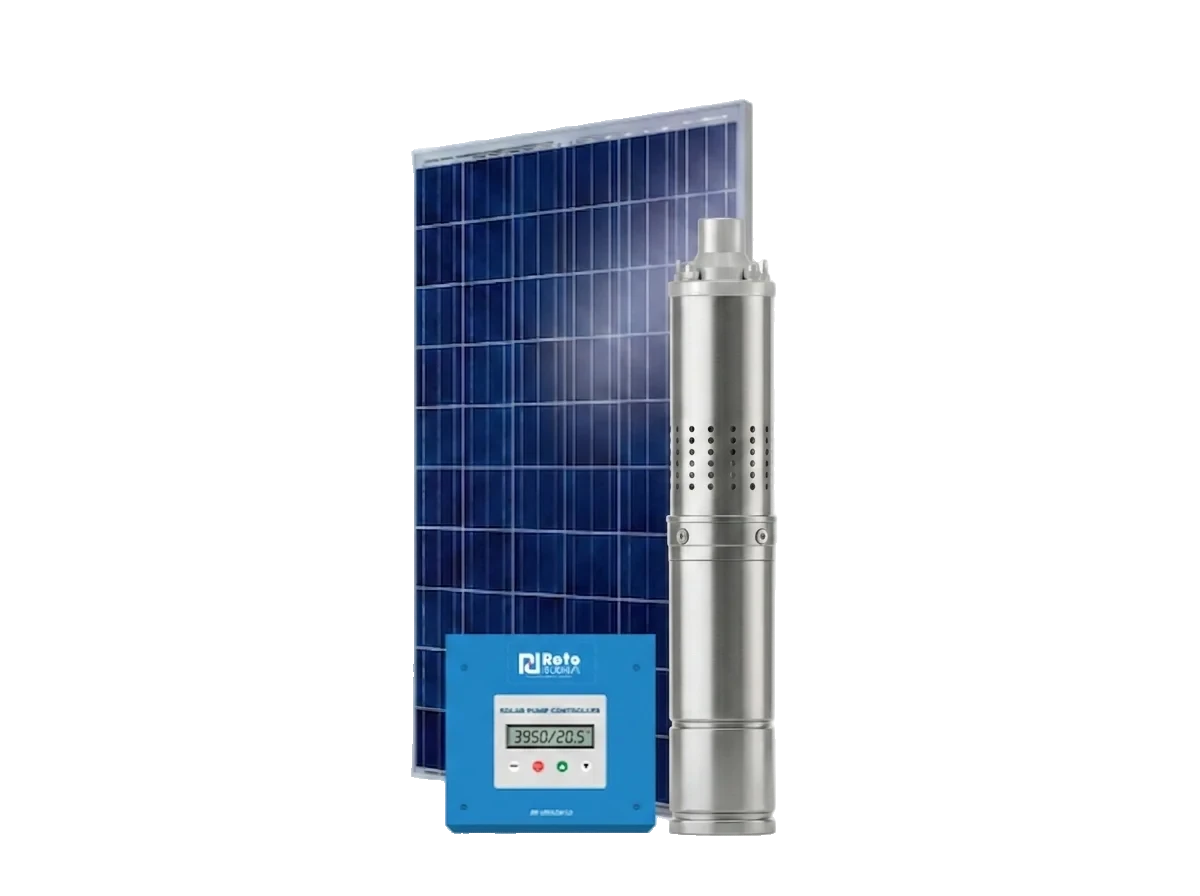

The NEO Series is engineered for high-head, high-discharge applications and deep borewells. The ECO Series is designed for farmers and small landholders who need reliable water delivery at medium heads. Both are solar-powered and include MPPT control, dry-run protection, and remote monitoring options.
Water output depends on the model, solar irradiation, water table depth, total dynamic head, and solar array size. Higher HP models can support large irrigation and community water requirements under suitable site conditions.
Roto RUDRA submersible pumping systems are compatible with 4-inch borewells and above. The 3-inch PMSM motors fit 3-inch casings, while 4-inch and 6-inch PMSM motors require matching borewell sizes.
Yes. The integrated MPPT controller optimises power extraction from solar panels under partial sunlight. Output may reduce during heavy overcast conditions, but the pump can continue operating when sufficient solar power is available.
Yes, provided the controller voltage and power limits are respected. Additional panels can improve operation during mornings, evenings, and cloudy conditions, but they do not necessarily increase the peak flow rate.
Solar Surface Pumping Systems
Helical rotor surface pump FAQs for canals, ponds and shallow sources
Solar Surface Pumping Systems FAQs

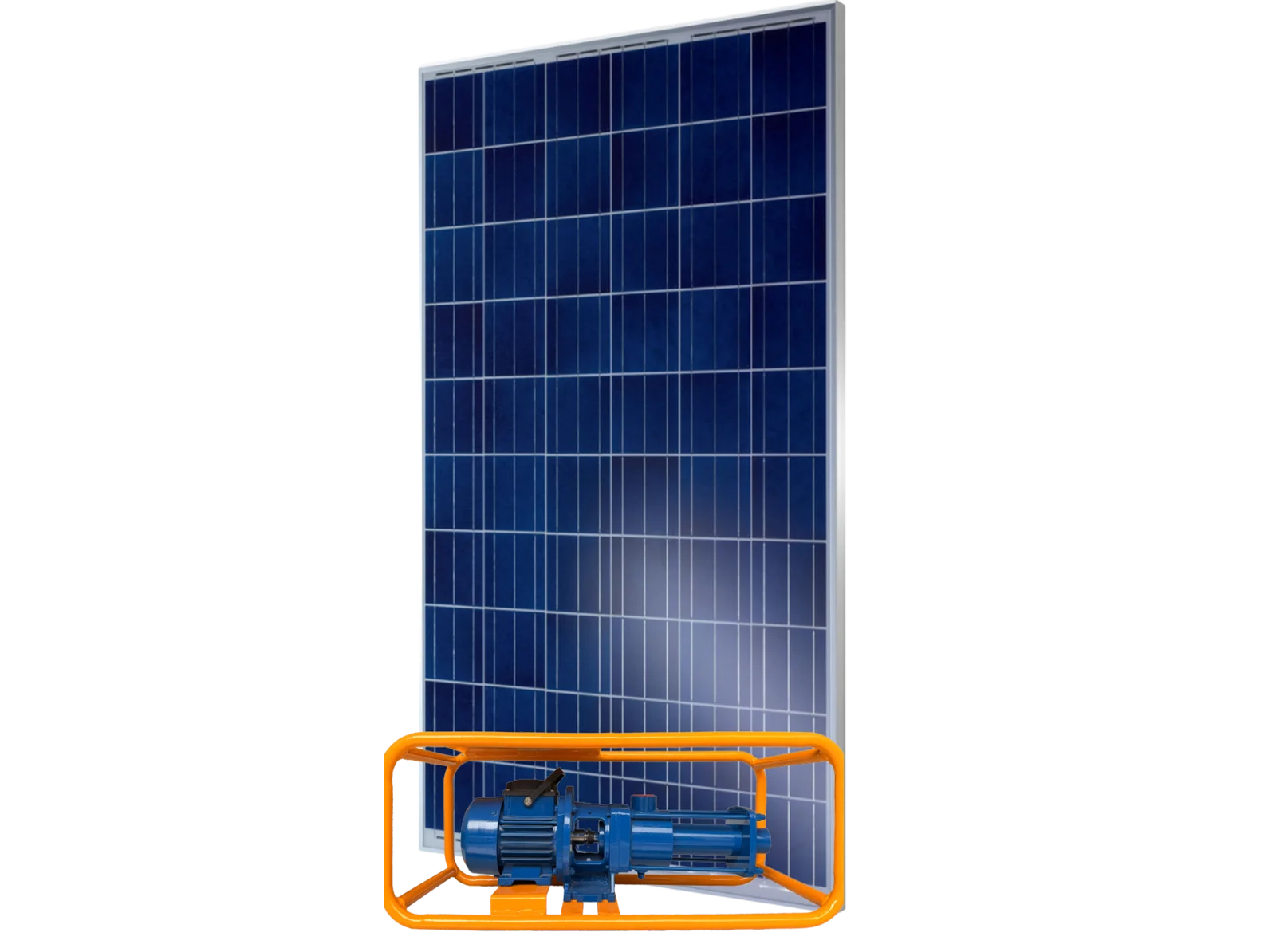

A solar surface pumping system is installed above ground and draws water from sources such as rivers, canals, ponds, tanks, or shallow wells. It is powered by solar panels and is easier to inspect and service than a submersible pump.
Yes. Since the pump is installed above ground, the system can be dismantled and reinstalled at another water source with minimal effort.
Yes. The MPPT controller adjusts operating parameters to maximise water output as sunlight changes through the day.
Dry-run protection stops the pump automatically to prevent damage when water is unavailable.
Yes. A properly selected surface pumping system can provide the required pressure and flow for drip and sprinkler irrigation applications.
Yes. Systems equipped with RMS and 4G connectivity can provide remote monitoring, performance data, and operational alerts.
Solar Controllers
Only solar, off-grid and hybrid controller FAQs
Solar Controllers FAQs

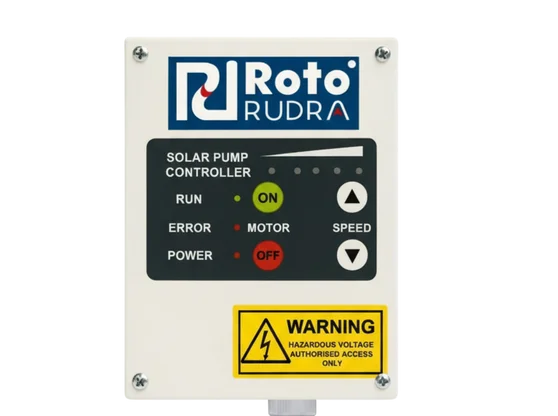

A solar pump controller converts variable DC power from solar panels into the correct voltage and frequency for the pump motor. It also provides MPPT, dry-run protection, over-voltage protection, under-voltage protection, and soft start features.

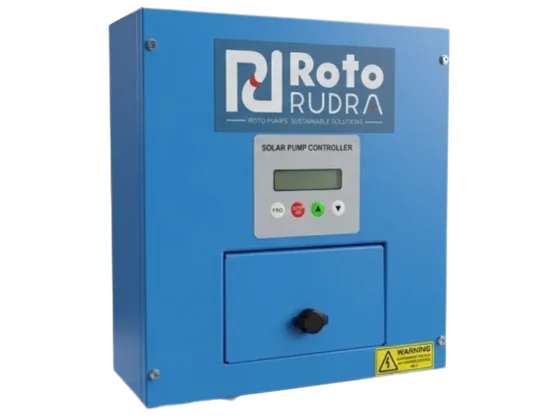

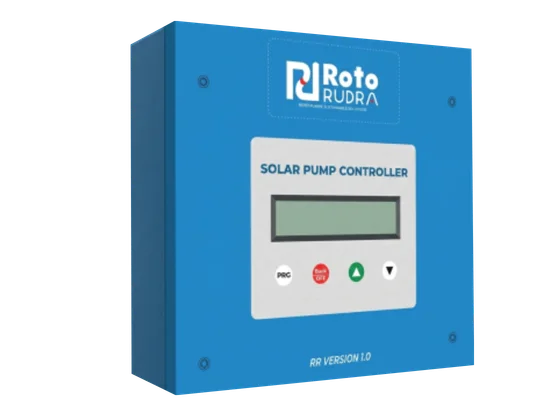

An only solar controller runs the pump exclusively on solar power. An off-grid controller can work with battery storage. A hybrid controller can switch between solar, battery, and grid power depending on availability and configuration.
Roto Solar Pump Controllers are available for applications ranging from 0.5 HP to 50 HP, covering domestic, agricultural, commercial, and industrial pumping needs.
Yes. Roto controllers are designed for compatibility with a wide range of surface and submersible pumping systems when correctly selected for the motor rating.
In many cases, yes. A suitable solar controller can be integrated with a compatible existing pump, subject to motor compatibility, solar array sizing, and controller selection.
Yes. Advanced solar controllers can support remote monitoring for pump performance, solar generation, and fault alerts from a phone or computer.
AC DC Submersible Pumps
Stand-alone helical rotor and centrifugal pump FAQs
AC DC Submersible Pumps FAQs
AC DC stand-alone submersible pumps can run on compatible AC or DC power, giving users flexibility to use grid power, solar power, or a suitable hybrid configuration depending on site requirements.

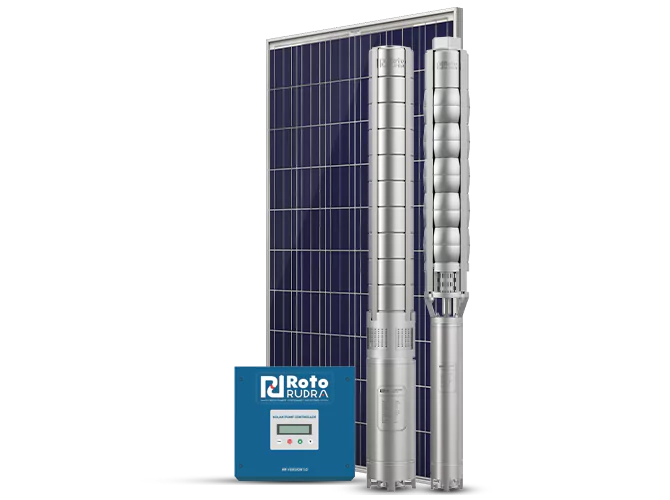

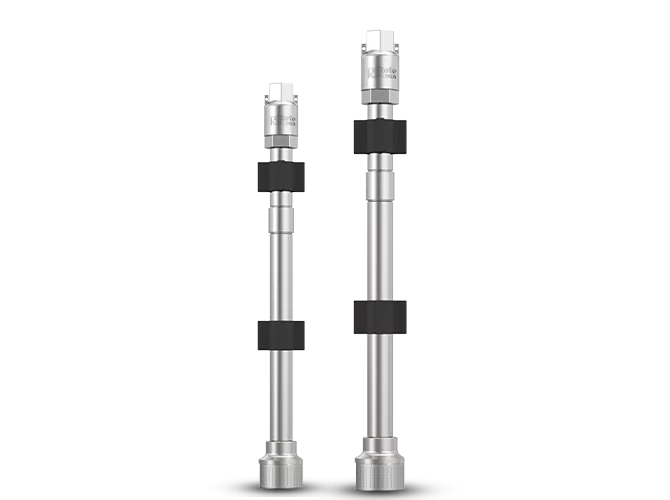

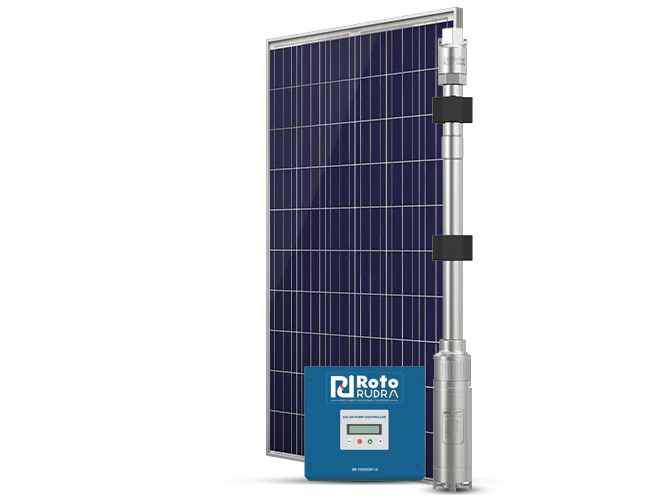

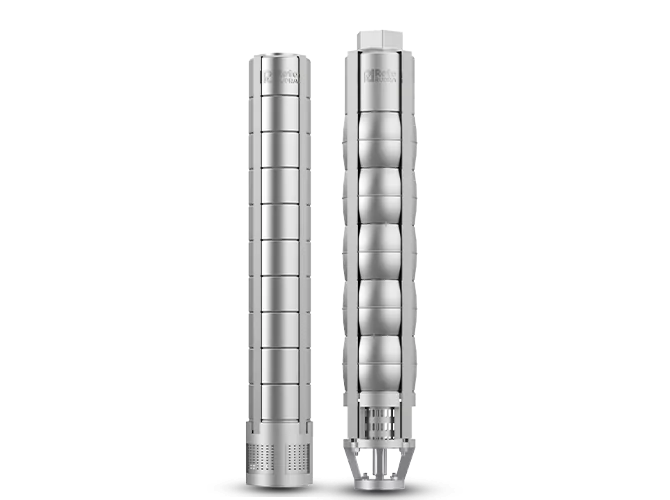

Helical rotor pumps are preferred for deep borewells, high heads, and low-yield conditions. Centrifugal pumps are better suited for high-flow water demand, irrigation, and water transfer applications.
For deep borewells and high-head applications, a helical rotor pump is generally preferred. Final selection should be based on borewell depth, water level, required discharge, and head.
Depending on controller configuration, grid-assisted or hybrid operation may be possible. The controller and pump must be selected for the intended power sources.
Roto RUDRA submersible pumps use stainless steel construction, with SS304 and SS316 options available for durability and corrosion resistance in demanding water conditions.
Yes. RMS-based remote monitoring options are available for selected systems through mobile and laptop connectivity.
DC Submersible Motors
3-inch, 4-inch and 6-inch PMSM motor FAQs
DC Submersible Motors FAQs
PMSM stands for Permanent Magnet Synchronous Motor. It uses permanent magnets in the rotor, reducing energy losses and improving efficiency, torque, power factor, and variable-speed performance for solar pumping.

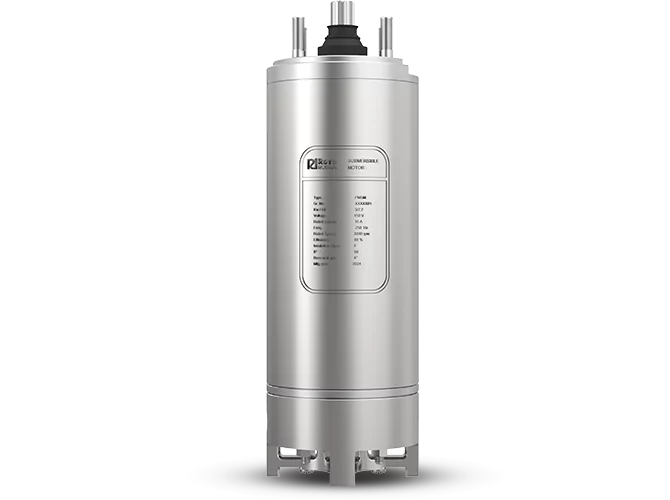

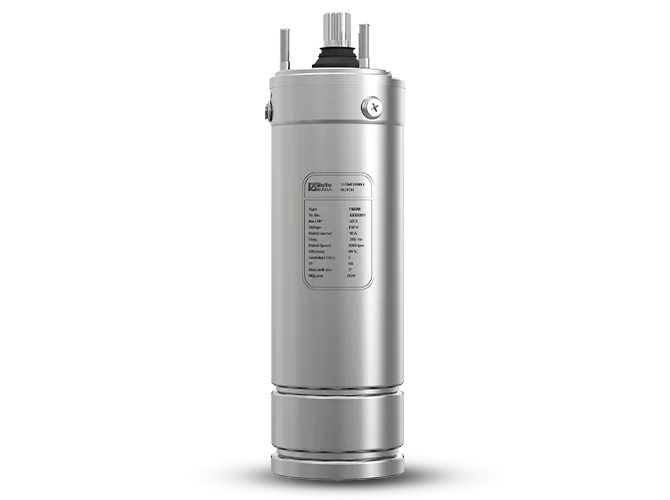

Roto RUDRA offers DC PMSM submersible motors in 3-inch, 4-inch, and 6-inch sizes for narrow borewells, standard agricultural borewells, and high-capacity applications.
Selection depends on borewell diameter, required pump capacity, water demand, operating head, and pump type. A 3-inch motor suits compact borewells, 4-inch suits standard applications, and 6-inch suits high-capacity or deep borewell needs.
The motors are available in oil-filled, water-filled, and resin-filled variants. Selection depends on application, borewell conditions, and installation requirements.
Yes. Roto RUDRA DC submersible PMSM motors are pressure-balanced for deep submergence, and rotating parts are dynamically balanced for smoother operation.
Yes. PMSM motors can support RMS connectivity for monitoring through mobile devices and laptops, depending on the system configuration.
